Product features: high strength, reliable, resistant to airflow impact; resistant to water mist and harsh environments; made of high-quality filter paper, stable performance, easy to install; produced in a Class 10,000 clean factory with no volatile dust; low energy consumption during production and use, in line with low-carbon environmental protection requirements.

Reinforced structure: When the equipment is not operating normally, sudden "surges" may occur, or the climate environment is severe, such as ice rain, heavy fog, etc. We have specially adopted an enhanced structure and special technology so that the filter can not be damaged under a pressure of 1300Pa, and will not fall apart when the air pressure is below 3000Pa. This is very important to ensure the safe operation of aerodynamic equipment.

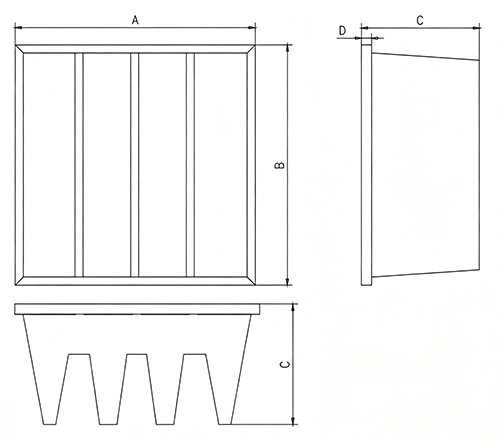

Dimensional diagram:

Why choose densely pleated V-shaped filter

Larger filtration area

The V-shaped structure design makes full use of the filtration space and provides a larger effective filtration area under the same installation size.

High air volume processing capacity

It is suitable for large air volume air treatment systems and can meet the high performance requirements of modern HVAC equipment.

Low pressure loss operation

Optimize the air flow channel design to effectively reduce system resistance and fan energy consumption.

High dust holding capacity

The large filter area brings higher dust holding capacity and longer service life.

Protect the high-efficiency filter

As a HEPA pre-filter, it can effectively extend the life of the high-efficiency filter.

Reduce operating costs

Reduce filter replacement frequency and system operation energy consumption.

Main features

• V-shaped structure design

• High air volume processing capacity

• Low operating resistance

• Large filtration area

• High dust holding capacity

• Stable and reliable operation

• Long service life

• Support OEM/ODM customization

Typical applications

Pharmaceutical industry

Used in high-efficiency filtration stages in GMP clean workshops, sterile production areas and air handling units.

Hospitals and medical facilities

Suitable for hospital central air-conditioning systems, clean operating rooms and medical clean areas.

Electronics and semiconductor industry

Used in chip manufacturing, electronic assembly and precision production workshop air purification systems.

Data center

Protect servers and precision equipment and reduce the risk of air particle pollution.

Commercial buildings

Air handling systems for office buildings, airports, shopping malls and large public buildings.

Food and Beverage Industry

Meet the air filtration needs of clean production environments.

Product advantages

Replace traditional bag filters

Can be used as a high-performance upgrade solution in many HVAC systems.

Lower operating costs

Low pressure loss design reduces fan energy consumption and saves long-term operating costs.

Longer service life

High dust holding capacity design extends the filter replacement cycle.

High reliability

Using high-quality filter material and solid structure to ensure long-term stable operation.

Flexible customization capabilities

Supports customization of different sizes, efficiency levels and frame materials.

Optional configuration

• F7 filter level

• F8 filter level

• F9 filter level

• MERV13 filtering level

• MERV14 filtering level

• MERV15 filtering level

• ABS framework

• Metal frame

• High temperature resistant structure

• Special size customization

• OEM brand customization

Our advantages

Professional air filter manufacturer

Focus on HVAC air filtration and clean air solutions.

Strict quality control

Products are tested for efficiency, resistance and structural performance.

Extensive project experience

Serving pharmaceutical, medical, electronics, data center and industrial customers.

Fast delivery capability

Supports fast delivery of standard specifications and customized project production.

OEM/ODM services

Meet the procurement needs of global dealers, brands and engineering projects.

Frequently Asked Questions (FAQ)

What is the difference between V-type filter and bag filter?

The V-type filter has a larger filtration area, lower operating resistance and higher air volume handling capacity, and is especially suitable for large HVAC systems.

Where is the V-type filter usually installed?

Usually installed at the end of the air handling unit (AHU) and used as a pre-filter for the HEPA filter.

What industries is it suitable for?

Widely used in pharmaceuticals, hospitals, electronics, data centers, food and commercial buildings and other fields.

Can it replace traditional bag filters?

Can be used as an upgrade solution in many projects to obtain lower pressure loss and longer life.

Does it support OEM service?

Support OEM and ODM cooperation.

Get a quote

Looking for a reliable pleated V-type filter supplier?

Please provide the following information:

• Filter size (length × width × depth)

• Filter efficiency requirements (F7/F8/F9)

• Air volume requirements

• Application industries

• Purchase quantity

Our engineers will provide professional selection suggestions and quotation plans within 12 hours.
