High efficiency filter without partition
It is made of densely pleated ultra-fine glass fiber filter paper and has a partition-less structural design. It is compact in size and has high filtration accuracy. It is the core filter element at the end of the clean space.
Submit an inquiry Understand our manufacturing capabilities
WhatsApp Inquiry

Connect directly with our engineers

Product features: Use 0.1 micron MPPS testing instrument for performance testing, product quality is guaranteed; produced in a class 10,000 clean factory, no volatile dust; using high-quality HV filter material, stable efficiency, low resistance, long service life; small size, saving installation space; high strength, light weight, easy to install.

Performance parameters: Full efficiency test (0.1-0.2μm): 99.9995%; Most penetrating particle size scanning method (MPPS), filtration level: U15;


Filter material: glass fiber filter paper

Frame: frosted aluminum profile

Dividers: hot melt glue

Working temperature: -20~70℃

Working humidity: ≤99%

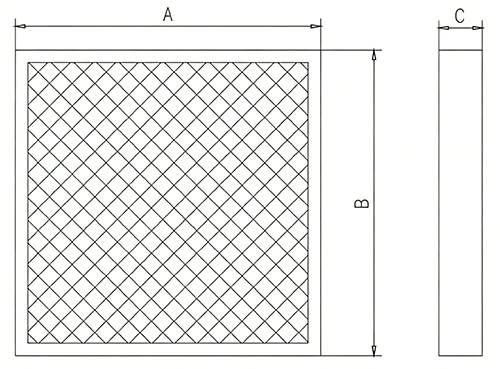

Dimensional diagram:

Replace the picture background with white.webp


Model specificationsDimensions (A*B*C)Rated air volumeInitial resistance



H13H14H15
BY-WG 570*570*69570*570*6950010012 0200
BY-WG 1170*570*691170*570 *691000100120200
BY-WG 1170*870*691170*870*6915001 00120200
BY-WG1170*1170*691170*1170*69200010012020 0
BY-WG 1495*1295*691495*1295*693100100120200
BY-WG 610,610*69610*610*691000190210240
BY-WG1 220*610*691220*610*692000190210240
BY-WG 320*320*80320*320*80300160180210
BY-WG 484*484*80484*484,80600160180210
BY-WG 630*630*80630*630*801100160180210
BY-WG 305*610*80305*610*80500160180210
BY-WG 610*610*80610*610*801000160180210
BY-WG 915*610*80915*610*801500160180210
BY-WG 1220*610*801220*610*802000160180210
BY-WG 320*320*93320*320*93300150160200
BY-WG 484*484*93484*484*93600150160200
BY-WG 630*630*93630*630*931100150160200
BY-WG 610*610*93610*610*931000150160200
BY-WG 915*610*93915*610*931500150160200
BY-WG 1220*610*931220*610*932000150160200
BY-WG 400*400*93400*400*93500190220270
BY-WG 550*550*93550*550*931000190220270
BY-WG 660*660*93660*660*931500190220270
BY-WG 320*320*95320*320*95300150160200
BY-WG 484*484*95484*484*95600150160200
BY-WG 630*630*95630*630*951100150160200
BY-WG 610*610*95610*610*951000150160200
BY-WG 915*610*95915*610*951500150160200
BY-WG1 220*610*951220*610*952000150160200
BY-WG 400*400*95400*400*95500190220270
BY-WG 550*550*95550*550*951000190220270
BY-WG 660*660*95660*660*951500190220270
