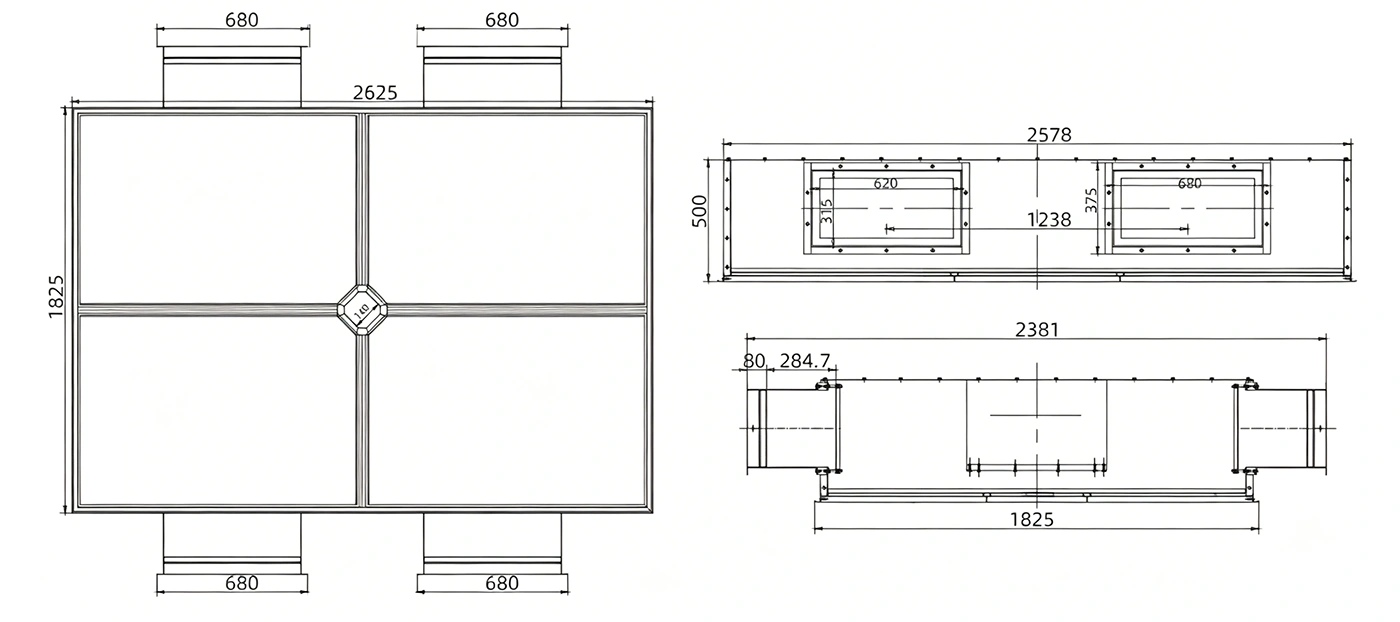

Schematic diagram of damping plate dimensions:

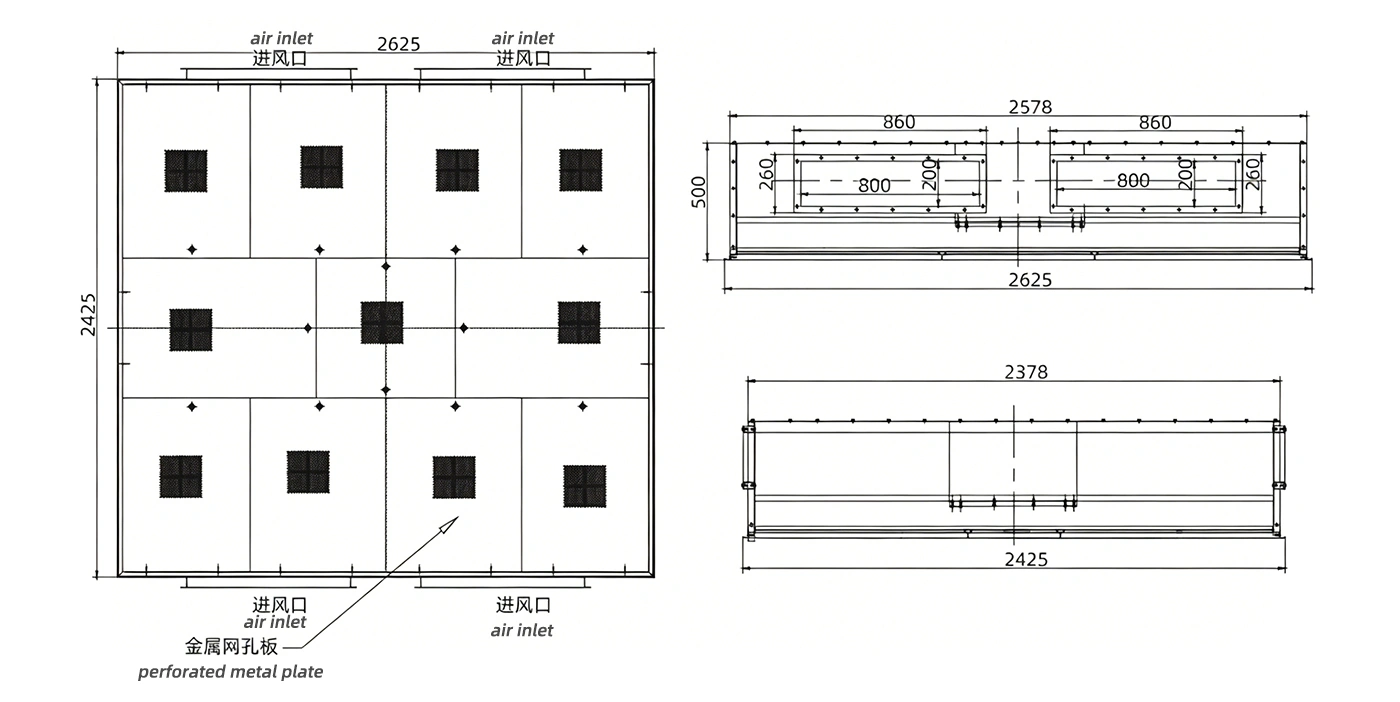

Schematic diagram of mesh plate dimensions:

Why choose laminar flow purification air supply ceiling

In an environment with high cleanliness level requirements, ordinary air supply methods are prone to produce eddy currents and secondary pollution, affecting the cleaning effect. The laminar flow purification air supply ceiling uses a uniform flow layer design and a high-efficiency filtration system to make the air cover the work area in a stable laminar flow state, reducing the risk of pollution from the source.

It is one of the important terminal equipment to ensure the stable operation of ISO grade clean rooms, and is especially suitable for industries with extremely strict particle control.

Main features

• Laminar air supply design, stable and even air flow

• Equipped with high-efficiency/ultra-high-efficiency filters (HEPA/ULPA optional)

• High cleanliness output, suitable for critical areas

• Flow equalization film or flow layer Structural design

• Low turbulence, low risk of pollution diffusion

• Modular structure for easy installation and maintenance

• Can integrate lighting, air volume adjustment and other functions

Typical applications

• Pharmaceutical sterile production workshop

• Biological laboratory and PCR laboratory

• Semiconductor and electronic clean room

• Medical operating room clean air supply system

• Food aseptic filling and packaging area

• Precision instrument manufacturing environment

• High-level clean room (ISO Level 5-8)

Customization capabilities

We can provide customized solutions according to different clean engineering needs:

• Customized size and module specifications

• HEPA / ULPA filter level selection

• Customized design of wind speed and air volume

• Box material (steel plate spraying, stainless steel, etc.)

• Integrated lighting, differential pressure port and other functional options

• Non-standard clean engineering overall matching design

• OEM / ODM Customization and engineering supporting services

Our advantages

• Focus on clean room terminal equipment manufacturing

• Experienced in filtration and airflow design

• Support engineering-level customized solutions

• Strict factory inspection and clean performance testing

• Adapt to international clean room standard requirements

• Strong stable batch supply capability

Get a quote

If you need a selection or quote for laminar flow purification air supply ceiling, please provide the following information:

• Clean level requirements (ISO level)

• Installation size or ceiling structure

• Air volume or room area

• Use industry (pharmaceutical/electronic/medical, etc.)

We will provide you with professional design solutions and optimal quotation support.
