It is mainly used for high-end air purification, exhaust gas purification, high-purity water treatment, wastewater treatment, sewage treatment, aquarium, desulfurization, denitrification, and can effectively remove impurities and pollutants in gases and liquids, as well as various gas separation and purification. It can also be widely used in the adsorption recovery of various low-boiling point substances, deodorization and degreasing, etc.
Honeycomb activated carbon has the characteristics of large specific surface area, microporous structure, high adsorption capacity and high surface activated carbon, and is widely used in air pollution control. The honeycomb activated carbon adsorption method is used, that is, the exhaust gas is in contact with porous activated carbon with a large surface, and the pollutants in the exhaust gas are adsorbed and decomposed, thus achieving a purification effect.
The pollutants that can be removed to varying degrees by honeycomb activated carbon include: carbon oxide, carbon tetrachloride, chlorine, benzene, diformaldehyde, acetone, ethanol, ether, methanol, acetic acid, ethyl ester, styrene, phosgene, malodorous gases, etc. Modified honeycomb activated carbon impregnated with chemical reagents can remove: acid mist, alkali mist amine, mercaptan, sulfur dichloride, hydrogen sulfide, ammonia, mercury, carbon monochloride, dioxins, etc.
This product is widely used in various organic waste gas purification systems with low concentration and large air volume. The waste gas to be treated can fully contact the activated carbon when passing through the square holes of the honeycomb activated carbon. The adsorption efficiency can reach 67.16%, the wind resistance coefficient is small, and it has excellent adsorption, desorption and gas dynamic properties. It can be widely used to purify and treat organic gases such as toluene, xylene, benzene, phenols, lipids, alcohols, aldehydes and other organic gases, malodorous gases and trace metals. Environmental protection equipment using honeycomb activated carbon has high exhaust gas treatment and purification efficiency, small adsorption bed volume, and low equipment energy consumption, which can reduce construction and operating costs. The purified gas fully meets environmental protection emission requirements.
| Project | Ordinary honeycomb charcoal | Water-resistant honeycomb carbon |

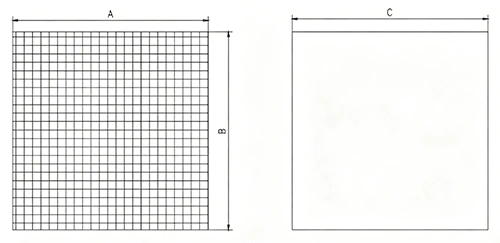

| Specification A*B*C (mm) | 100*100*100, 100*100*50, 50*50*100, 50*50*50 | |
| Iodine adsorption value (mg/g) | >950 | >900 |
| Specific surface area (m2/g) | 1050 | 950 |
| Carbon tetrachloride adsorption rate (%) | >65 | >60 |
| Benzene adsorption rate (%) | >45 | >40 |
| Forward compressive strength (Mpa) | >0.7 | >0.8 |
| Side compressive strength ( Mpa) | >0.3 | >0.3 |
| Moisture content (9%) | <5 | <2 |
| Pore density (pore L/in2) | 50-300 | |
| Bulk density (g/ml) | 0.3-0.55 | |
| Using temperature (°℃) | <400 | |
| Desorption temperature (℃) | <120 | |
| Empty tower wind speed (m/s) | 0.8 (bed thickness: 600mm resistance: 490Pa) | |
| Water resistance | X | V |
In gas pollution control, traditional granular activated carbon is prone to problems such as high resistance and uneven air flow distribution. Through structural optimization, honeycomb activated carbon allows gas to pass through the pores evenly, improving adsorption efficiency while maintaining low pressure loss, and is more suitable for air treatment systems with large air volume and continuous operation.
It is especially suitable for projects that are sensitive to wind resistance and require high operating energy consumption. It can reduce system operating costs while ensuring the purification effect.
Honeycomb structure design, large specific surface area
Low wind resistance design, significant energy saving effect
High adsorption capacity, effective removal of VOCs and odors
Even air flow distribution, high contact efficiency
High strength, not easy to powder or break
Different iodine value levels can be selected according to needs
Suitable for large air volume continuous operation systems
Industrial organic waste gas treatment system
Painting shop and spray booth waste gas purification
Chemical and pharmaceutical industry waste gas treatment
Deodorization of sewage treatment stations and garbage treatment facilities
Commercial Building fresh air and air purification system
HVAC centralized ventilation system
Food processing and odor control places
We can provide customized honeycomb activated carbon solutions according to different application scenarios:
Customized sizes and specifications
Multiple hole densities and structural designs
Customized activated carbon iodine value and adsorption performance
Customized outer frame structure and installation method
Waterproof, moisture-proof or enhanced products are optional
OEM / ODM OEM and brand customization services
Professional air filtration material manufacturing experience
Stable honeycomb molding process, high quality consistency
Support stable supply of large quantities
Strict quality testing and performance control
Extensive experience in industrial waste gas treatment projects
Quick response to customization needs and technical support
If you need a selection or quote for a honeycomb activated carbon filter, please provide the following information:
Air volume requirements
Use environment (industrial/commercial/exhaust gas treatment, etc.)
Installation size or equipment structure
Target pollutant types (such as VOCs, odors, etc.)
We will provide you with professional selection suggestions and the best quotation plan.
