Downward-adjustable high-efficiency air supply vent
There are two series of high-efficiency air supply outlets: I and II. Series I is in the form of replaceable filters, and Series II is in the form of disposable air outlets, both of which are downward air supply.

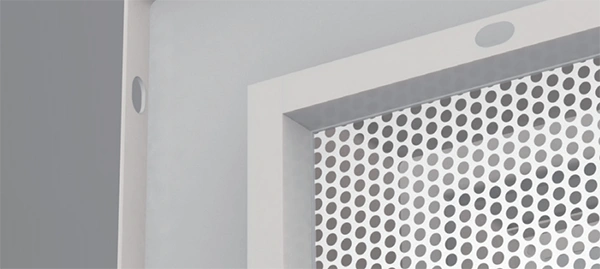

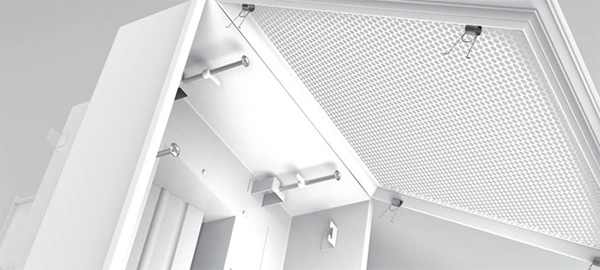

High-efficiency air supply vent series 1: This air vent is composed of high-efficiency filters, high-quality thin steel plates, aluminum alloy diffusion orifice plates, etc. It is easy to install, has reliable sealing, and can easily replace the filter. The takeover method can be top connection or side connection.

High-efficiency air supply vent series II: divided into ultra-thin type and thin type. All are disposable air outlets, which are easy to replace (you only need to remove the pipe clamp of the soft joint between the air supply pipe and the air outlet). This series is particularly suitable for purification air conditioning systems with limited ceiling space.
Submit an inquiry Understand our manufacturing capabilities
WhatsApp Inquiry

Connect directly with our engineers


Enterprise WeChat screenshot_20260523114245.webpEnterprise WeChat screenshot_20260523114254.webp


Air outlet type

Structure


BY

Ordinary type


BYT

Liquid tank seal, pressure difference detection port, aerosol dust hole (optional)





Main air outlet models

Recommended air volume

Filter size

BY-610/10

600-1500m³/h

610×610×90

BY-610/20

1200-3000m³/h

1219×610×90

BY-320/10

300-450m³/h

320×320×90

BY-48 4/10

600-1000m³/h

484×484×90

BY-630/10

1000-1500m³/h

630×630×90

Note: The above dimensions are common specifications, other sizes can be processed according to user requirements.
